Identity Card
X300 is a cylindrical grinding machine for external diameters with a moving column, suitable for machining workpieces up to 300 mm in length and a center height of 130 mm.
300 mm
250 mm
50 / 10 kg
HIGHLIGHTS
TECHNOLOGY
The components of the grinding machine
On X300, thanks to the innovations used on the linear X and Z axes, the dressing area is on the opposite side to the work area. In this way, in addition to reducing the travel of the axes, it is also possible to dress the grinding wheel during the automated piece change phase, reducing working times. The small dimensions of the machine allow convenient access to all inspection areas.

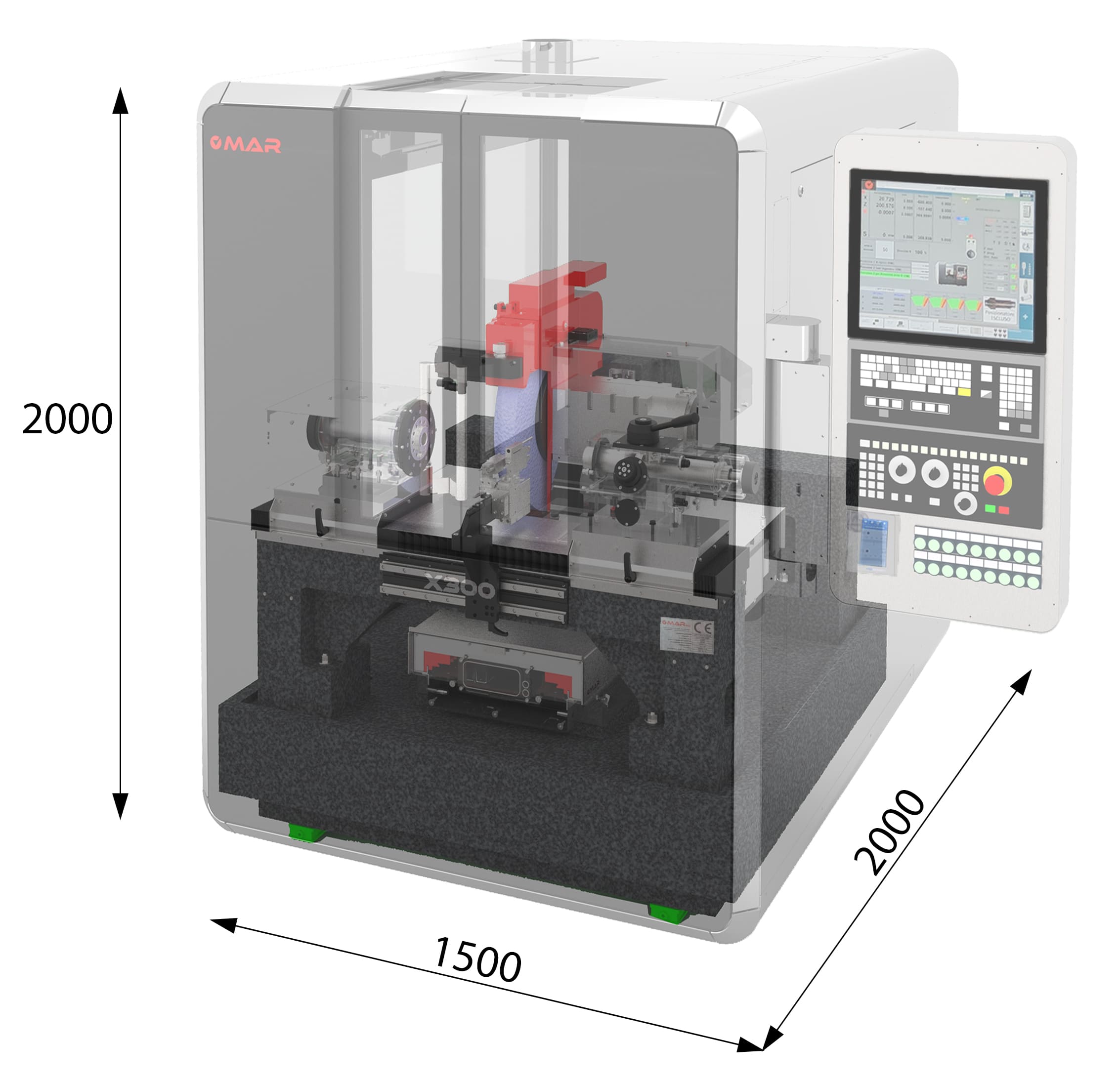

Il rivoluzionario concetto di movimento degli assi porta mola ed uno studio mirato sulla riduzione degli spazi, permettono ad X300 di avere il minor ingombro possibile a terra, limitandolo a 1.500 x 2.000 mm. Anche l’altezza della carenatura (1.500 mm.) contribuisce a contenere il volume, e grazie all’apertura frontale ad ali di gabbiano, il caricamento manuale dei pezzi ed il piazzamento macchina sono molto pratici.
X300 can be configured with a straight left wheel or with a right wheel inclined at a fixed angle of 26.5°. The available electrospindles, both liquid-cooled and equipped with an internal balancer with ultrasonic contact sensor, are:
The main groups of the machine are mounted on linear guides with recirculating roller skates, and equipped with a very simple manual lever for locking and unlocking. With this system, no equipment of any kind is needed for positioning the machine, with an extreme reduction in setup times.
The universal belt-driven workhead was designed specifically for the X300. The new, extremely compact design is designed to achieve high precision, with roundness errors of less than 0.4 mcr, allowing for work on fixed or rotating centers. It also comes with a tailstock complete with taper adjustment, lever or pedal-operated opening, and adjustable thrust load with either spring or pneumatic closure.
Upon request, the X300 can be equipped with a synchronous rotating workhead and counterspindle. This solution features granite units, inside which are mounted new-generation liquid-cooled torque electrospindles to minimize roundness errors. The counterspindle has a sleeve with an automatic 45 mm stroke to clamp the workpiece, and a cylindricity adjustment of 0.2 mm.
